80-150 Horsepower

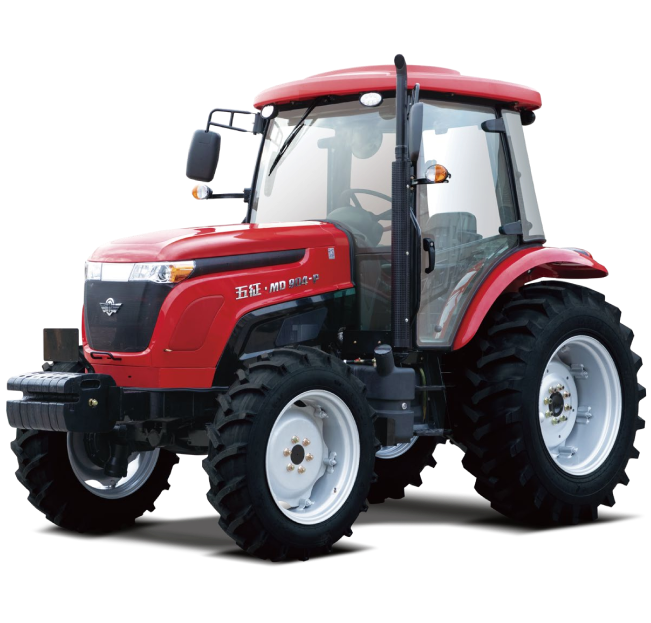

MD Series

  • e2_icon03.svg
    Extraordinary Flexibility

    Enjoy easy maneuverability with a turning radius of just 4.2 meters.

  • e2_icon02.svg
    Ergonomic Design for Comfort

    Features a smooth-shifting synchronizer gearbox and a premium Grammer seat for maximum comfort.

  • e2_icon01.svg
    International Collaboration Excellence

    Jointly developed with AVL, incorporating cutting-edge global technology for industry-leading performance.


MD series products are brand-new and jointly developed by Wuzheng Group and AVL in Europe, and are the earliest products adopting synchronizer shifting technology with the same 70-100 horsepower in China. These products feature advanced performance and technology, compact structure, easy and comfortable maneuvering, low vibration, low fuel consumption, etc.

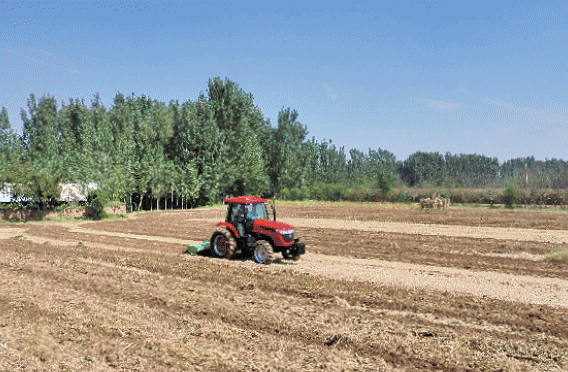

  • GIF动图生成 MD(1).gif
    Versatile Workhorse

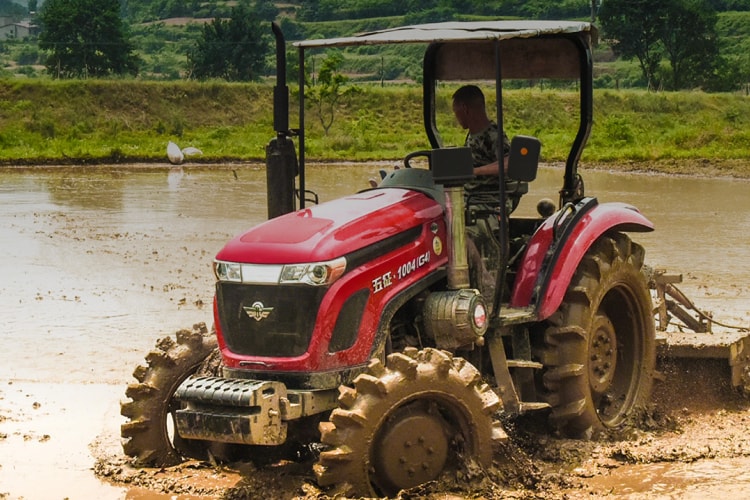

    Whether plowing, leveling, or puddling, its high ground clearance and waterproof design ensure reliable operation, even in muddy conditions, with a top speed of 39 km/h for fast transitions.

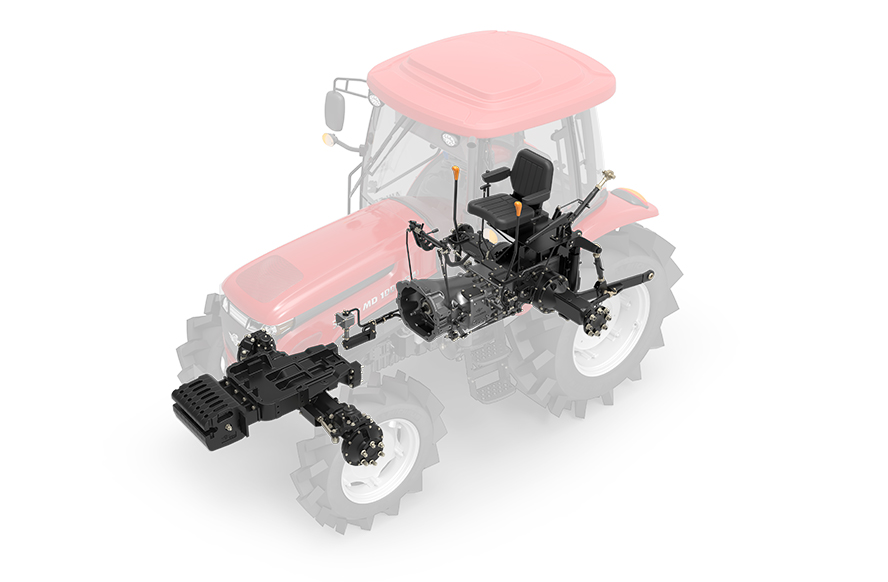

  • 图2   MD底盘及档位.jpg
    Power and Precision in Harmony

    With 16+8 gear options and an optimized powertrain and chassis, it delivers peak performance at all times.

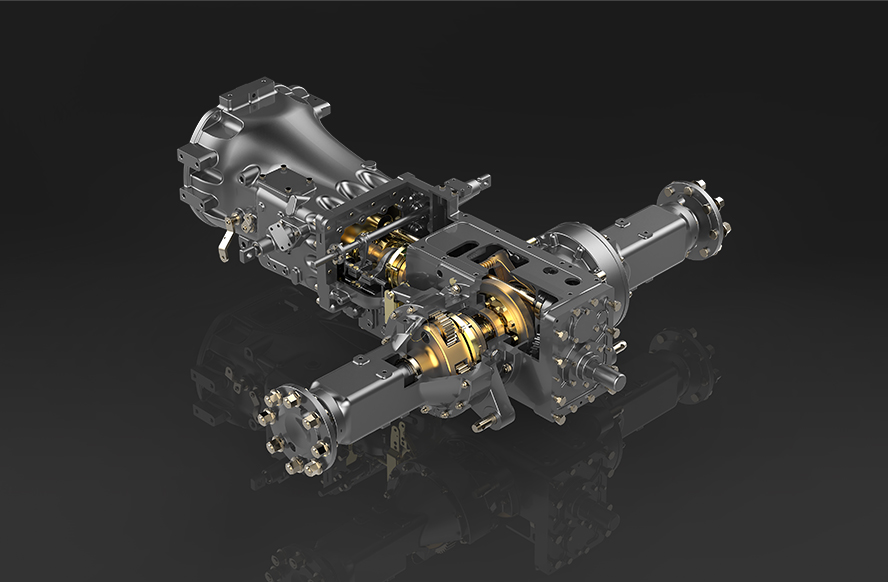

  • 图3    MD系列底盘剖视图.jpg
    Built to Last

    Designed with tubular housings, helical gear drives, and a triple-shaft structure to ensure long-term reliability.

Technical specification




ItemUnitDesign value
Model/MD1004
L×W×Hmm4120×2000×2775
Wheelbasemm2145
Minimum ground clearancemm470(bottom of front axle)
Minimum useable masskg3300
Maximum lifting forcekN15.9
Minimum turning radiusm4.2
Engine - Type/Direct injection, in-line, liquid-cooled, four-stroke
Engine - Model/4G33TC-100G31C/YN38
Rated engine power
kW73.5
Rated engine speed
r/min2300
Drive system - Transmission type/16+8/16+16/32+32
Drive system - Auxiliary gearbox shifting method/Synchronizer gear shift
Running System - Tire model (front wheel)/9.5-24/9.5-24(paddy field)/11.2-24
Running System - Tire model (Rear wheel)/16.9-30/14.9-30/16.9-30(paddy field)/14.9-30(paddy field)

The next step

Please feel free to reach us to discover more opportunities together!
